Forced Air Convection Chamber Oven

Chamber Oven

Heavy-duty industrial batch convection oven with precision airflow ducts for preheating, curing, drying, and component de-embrittlement.

Temp Range:Ambient +10°C to 350°C

Air Flow:Horizontal or Vertical Crossflow Recirculation

Heating:Tubular Electric Incoloy / Gas Burners

Working Vol:500 Liters to 10,000 Liters

Foundry Core Drying Trolley Type Core Drying Oven

Trolley Type Core Drying Oven

Floor-tracked rail trolley drying oven engineered for rapid moisture removal and baking of foundry sand cores and heavy electric motor stators.

Temp Range:50°C to 300°C

Air Flow:High CFM Forced Recirculation Blower

Heating:Electric Elements / Diesel Burner / LPG

Working Vol:2 Tons to 20 Tons charge capacity

±2°C Uniformity Aging Oven

Aging Oven

High-precision precipitation hardening and artificial aging oven for aerospace and automotive aluminum extrusion profiles, forgings, and alloy castings.

Temp Range:100°C to 280°C

Air Flow:Reversing Longitudinal Velocity Airflow

Heating:Indirect Gas Fired / Electric Air Heaters

Working Vol:1 Ton to 15 Tons per batch

High-Temp Re-baking Electrode Baking Oven

Electrode Baking Oven

Industrial welding consumable drying and baking oven up to 450°C designed to eliminate hydrogen embrittlement in critical structural welding.

Temp Range:Ambient +10°C to 450°C

Air Flow:Natural Convection & Gravity Exhaust

Heating:Mineral Insulated Electric Heating Rods

Working Vol:100 Kgs to 2000 Kgs capacity

Precision Soak Grinding Wheel Baking Oven

Grinding Wheel Baking Oven

Precision multi-tier curing oven for resin-bonded, vitrified, and diamond abrasive grinding wheels requiring strict ramp-soak curing curves.

Temp Range:50°C to 250°C (Resinoid) / 450°C (Vitrified)

Air Flow:High Velocity Horizontal Laminar Airflow

Heating:Finned Electric Air Heaters / Gas Fired

Working Vol:1 Ton to 10 Tons per charge

Controlled Cooling Annealing Oven

Annealing Oven

Controlled heating and slow cooling lehr oven for thermal stress relief of glass containers, optical lenses, copper tubing, and pressed metal stampings.

Temp Range:150°C to 650°C

Air Flow:Crossflow Recirculation with Modulating Fresh Air

Heating:Electric Kanthal Coils / Clean Gas Radiant

Working Vol:1000 Liters to 15,000 Liters

Tunnel Conveyor Conveyor Drying Oven

Conveyor Drying Oven

Continuous tunnel conveyor oven equipped with wire mesh belt, roller chain, or overhead monorail for automated high-speed painting and drying lines.

Temp Range:Ambient +10°C to 300°C

Air Flow:Multi-Zone Top & Bottom Counterflow Recirculation

Heating:Electric Finned Elements / Gas / Hot Air Generator

Working Vol:Conveyor Width: 300mm to 2000mm, Length up to 30m

Crane Loading Top Load Oven

Top Load Oven

Vertical top-loading pit style oven with counterbalanced pneumatic lid for easy overhead crane loading of heavy coils, molds, and shafts.

Temp Range:50°C to 450°C

Air Flow:Vertical Upflow / Downflow Forced Recirculation

Heating:Heavy-Duty Incoloy Electric Heaters

Working Vol:500 Liters to 8000 Liters

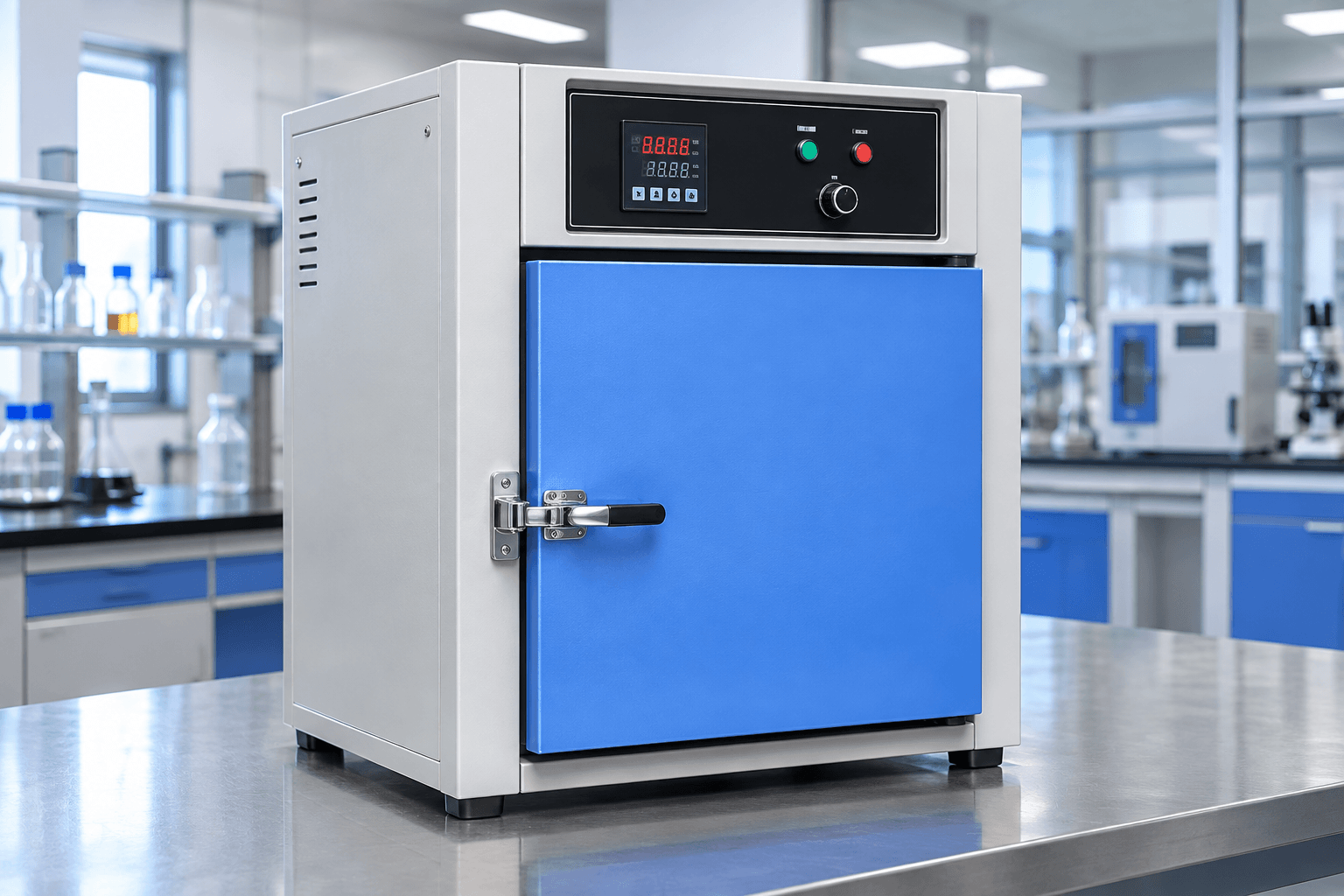

Benchtop Precision Lab Oven

Lab Oven

Benchtop precision forced-air laboratory oven with digital PID microprocessor control for R&D laboratories, material testing, and QA testing.

Temp Range:Ambient +5°C to 250°C / 300°C

Air Flow:Gentle Forced Air Convection

Heating:High-Grade Nichrome Mica Band Heaters

Working Vol:30 Liters to 350 Liters

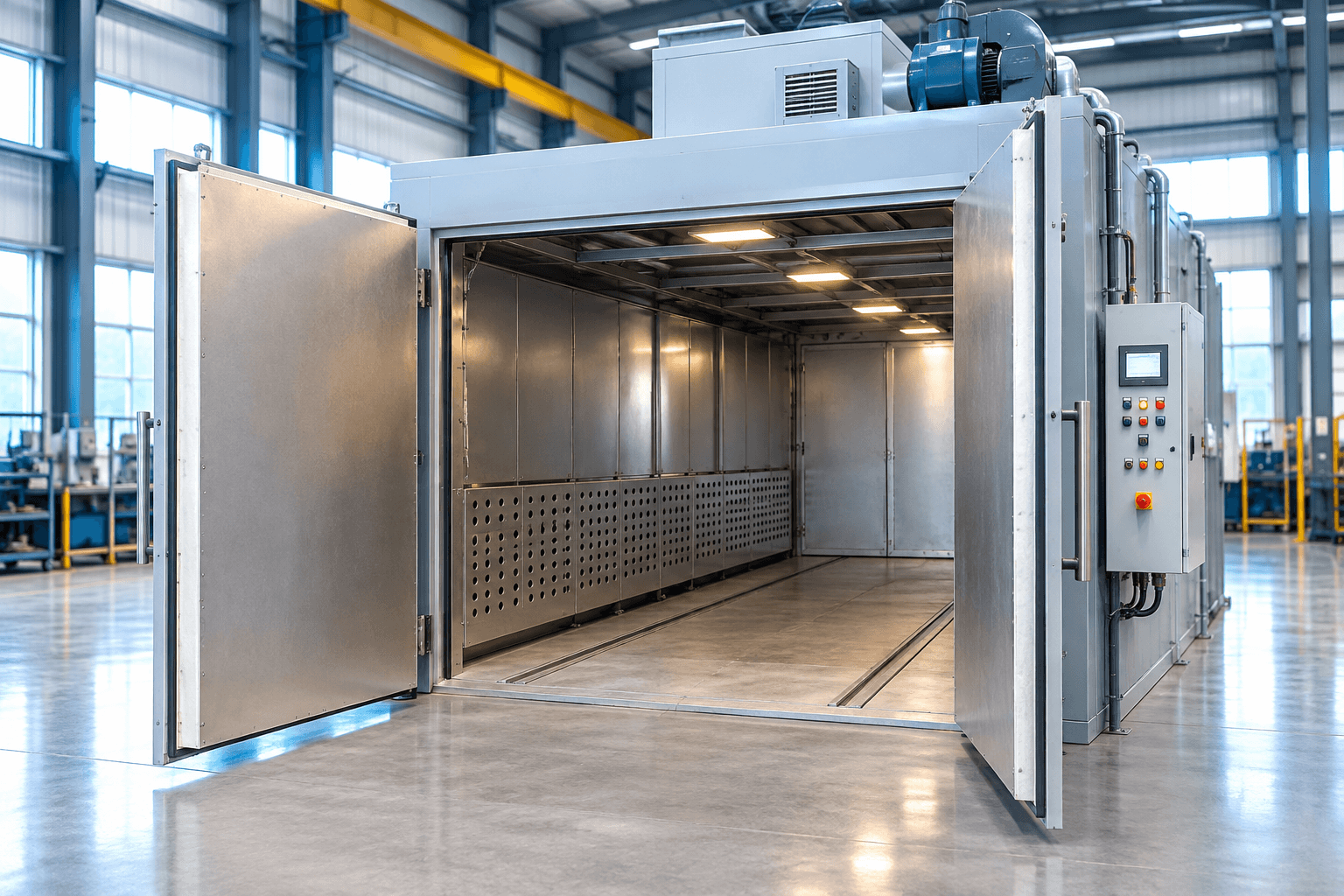

Composite Curing Curing Oven

Curing Oven

Clean-air uniform temperature curing oven for industrial composites, fiberglass, carbon-fiber aerospace prepregs, and silicone molding.

Temp Range:Ambient +10°C to 260°C / 350°C

Air Flow:Horizontal Laminar High Velocity Recirculation

Heating:Low-Watt-Density Electric Heaters / Steam Coils

Working Vol:1000 Liters to 20,000 Liters

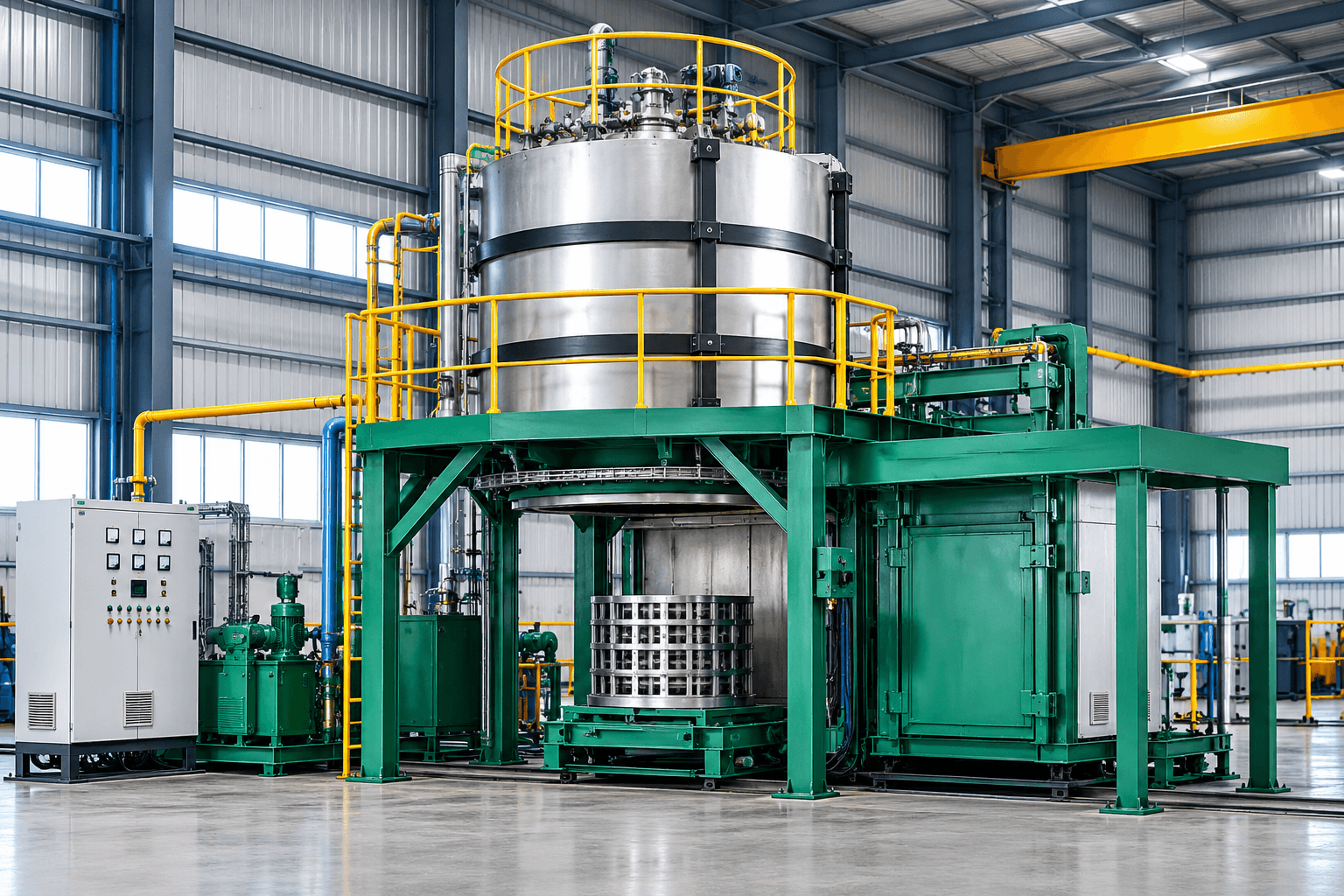

Rapid Drop Quench Solutionizing Furnace & Oven

Solutionizing Furnace & Oven

Combined high-temperature solutionizing heat treatment system with rapid automated drop-quench mechanism for aircraft aluminum alloys.

Temp Range:400°C to 560°C

Air Flow:High-Volume Vertical Airflow Circulation

Heating:Electric Tubular Heaters / Indirect Radiant Gas

Working Vol:500 Kgs to 4000 Kgs per batch

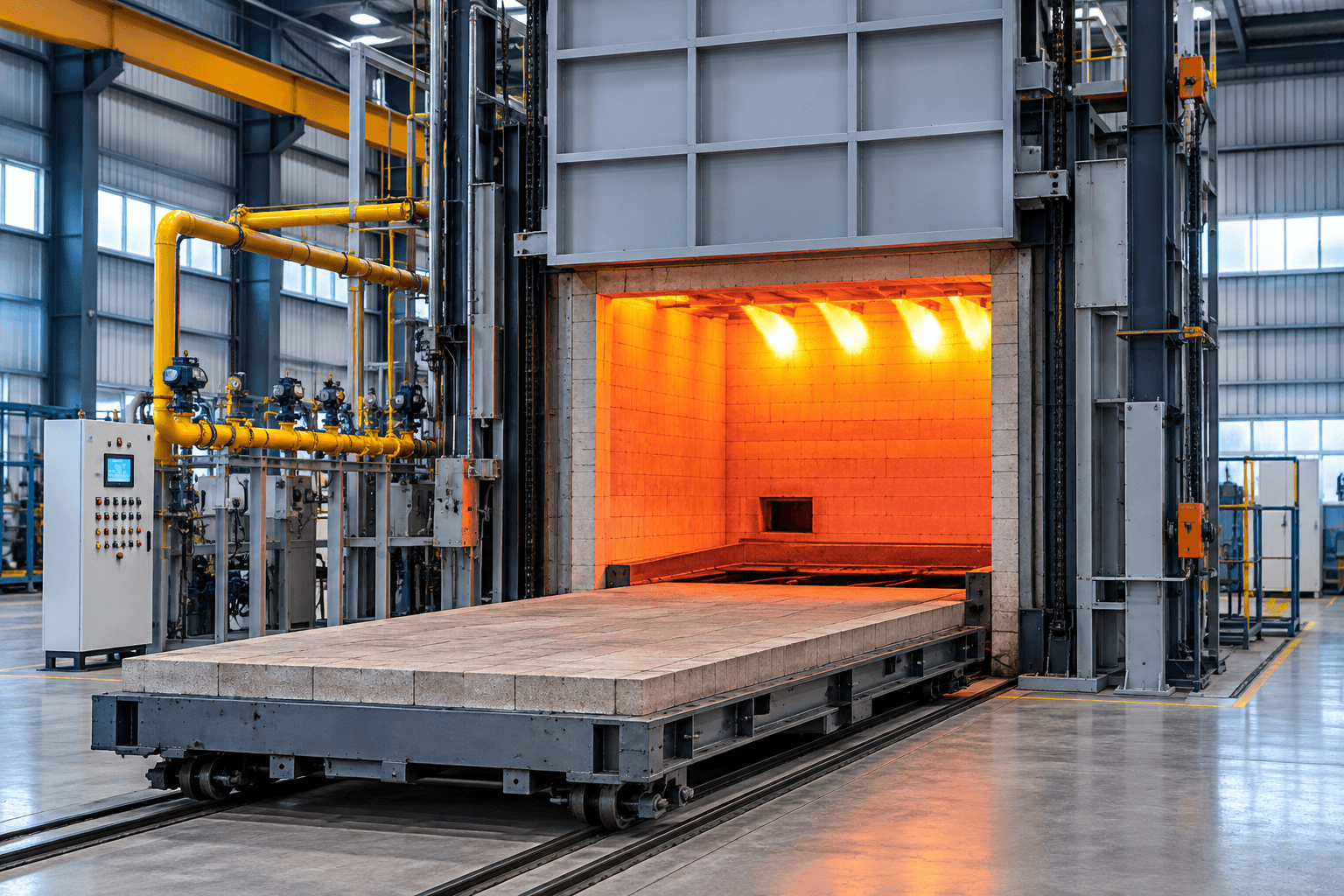

Energy Efficient Gas Gas Fired Furnace & Oven

Gas Fired Furnace & Oven

Heavy industrial thermal processing oven powered by energy-efficient modulating natural gas, LPG, or biogas burners with air recuperation.

Temp Range:100°C to 650°C

Air Flow:Heavy-Duty Combustion Air + Recirculation Blowers

Heating:Natural Gas (PNG) / LPG / Biogas Burners

Working Vol:2 Tons to 50 Tons capacity
