Catalogues for Industrial Furnaces

Engineered to ISO 9001:2015 standards. Offering energy-efficient batch, continuous, sealed atmosphere, and turnkey metallurgical heating furnaces with low power consumption and sturdy steel construction.

Browse 12 Models Request Custom Specs
All Furnaces (12) Heat Treatment Atmosphere / Carburizing Continuous & Pusher Specialty & Salt Bath
Bright Annealing Bell Furnace

Bell Furnace

Removable heating hood with protective inner retort cover for high-tonnage bright annealing of steel coils, copper wire, and conductor materials.

Max Temp:1050°C
Atmosphere:Hydrogen / Nitrogen / DX Gas
Heating:Electric / Gas Fired
Capacity:5 Tons to 60 Tons per charge
Gas Carburizing Pit Type Furnace (GCF)

Pit Type Furnace (GCF)

Sub-floor vertical cylindrical retort furnace engineered for deep case carburizing, carbonitriding, hardening, and tempering of long shafts.

Max Temp:950°C to 1100°C
Atmosphere:Endothermic Gas / Methanol-LPG
Heating:Electric / Radiant Tube Gas
Capacity:500 Kgs to 8000 Kgs
Heavy Duty Bogie Type Furnace

Bogie Type Furnace

Heavy-capacity car bottom furnace with motorized hearth bogie for stress relieving, normalizing, and annealing of large structural castings.

Max Temp:1250°C
Atmosphere:Air / Inert Gas Purge
Heating:Electric / High Velocity Gas / Light Oil
Capacity:2 Tons to 100 Tons
Rapid Heat Transfer Salt Bath Furnace

Salt Bath Furnace

Liquid molten salt immersion heating for ultra-fast, distortion-free hardening, austempering, martempering, and liquid nitriding of cutting tools.

Max Temp:150°C to 1350°C
Atmosphere:Liquid Neutral / Cyanide-Free Salt
Heating:Submerged Heavy Duty Electrodes
Capacity:50 Kgs to 1500 Kgs/batch
Continuous Line Roller Hearth Furnace

Roller Hearth Furnace

Continuous horizontal roller conveyor line for high-throughput annealing, hardening, and normalizing of long tubes, bars, and steel plates.

Max Temp:1150°C
Atmosphere:Protective Nitrogen / Hydrogen / Air
Heating:Radiant Gas Tubes / Electric APM Coils
Capacity:1 Ton to 15 Tons / Hour
Lab & Batch Muffle Furnace

Muffle Furnace

Compact high-temperature batch chamber furnace with ceramic muffle ensuring complete isolation of workpiece from heating elements.

Max Temp:1200°C to 1400°C
Atmosphere:Air / Purge Gas Atmosphere
Heating:Silicon Carbide (SiC) / Kanthal A1
Capacity:5 Liters to 150 Liters

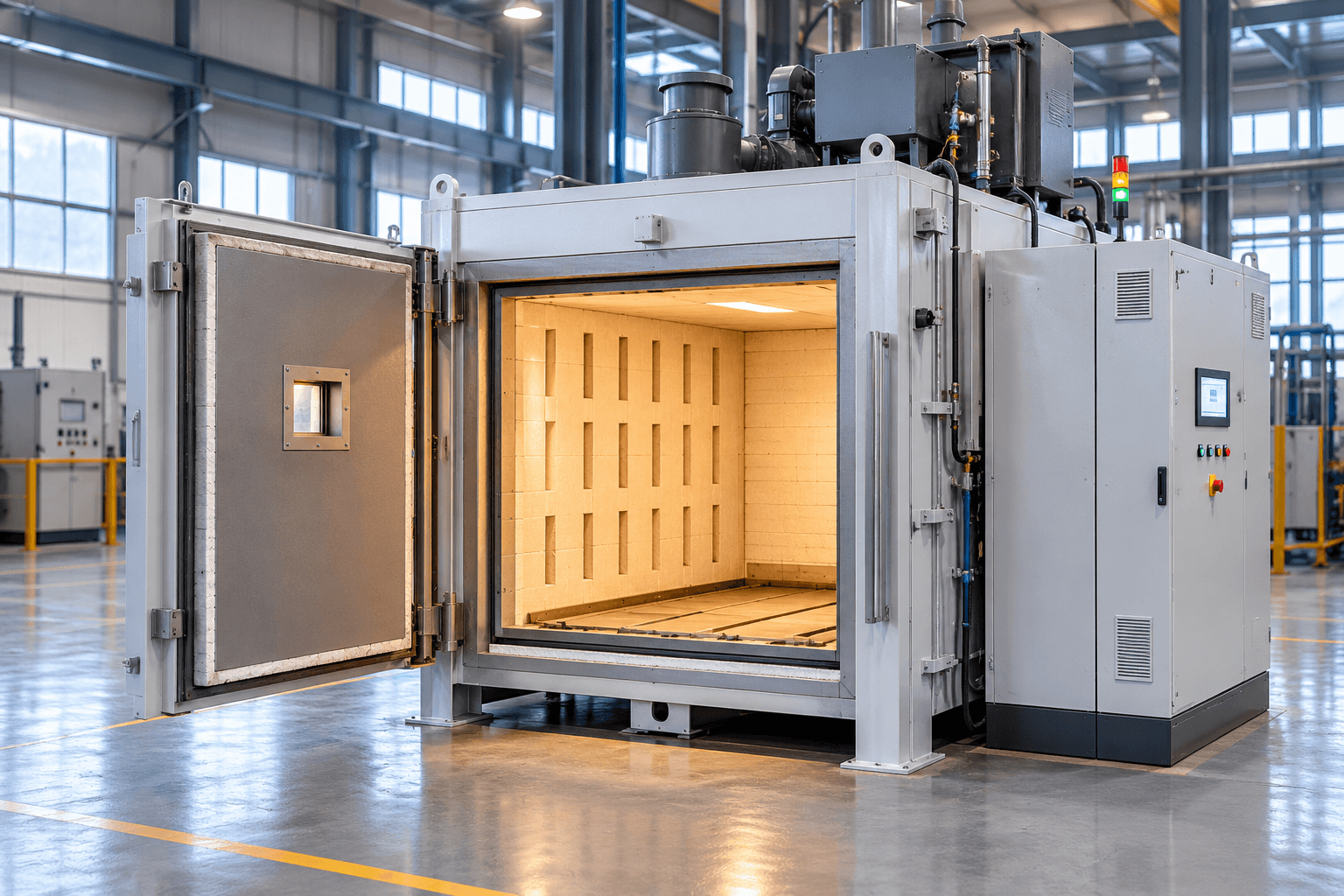

Multi-Purpose Chamber Furnace

Chamber Furnace

Rugged box type batch furnace with pneumatic vertical lift door for forging preheating, hardening, normalizing, and pack carburizing.

Max Temp:1100°C to 1300°C
Atmosphere:Air / Endothermic Protective Gas
Heating:Electric / Gas / Dual Fuel Burners
Capacity:200 Kgs to 5000 Kgs

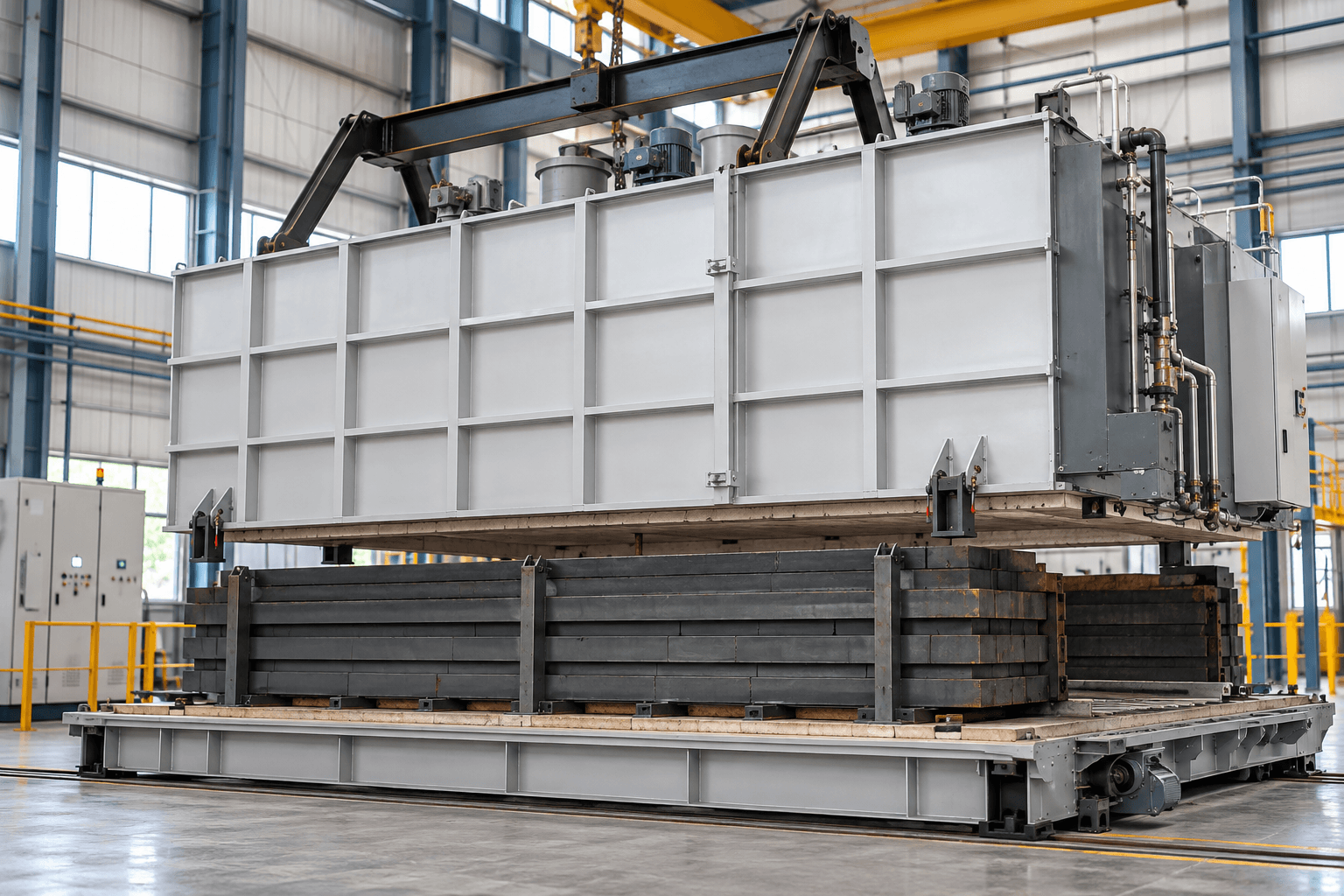

High Tonnage Rectangular Bell Furnace

Rectangular Bell Furnace

Large rectangular footprint lift-off bell furnace with multiple bases designed for long structural bars, tubes, and sheets.

Max Temp:1050°C
Atmosphere:Nitrogen / Hydrogen / Argon / Exothermic
Heating:Electric / Indirect Gas Burners
Capacity:10 Tons to 80 Tons per charge

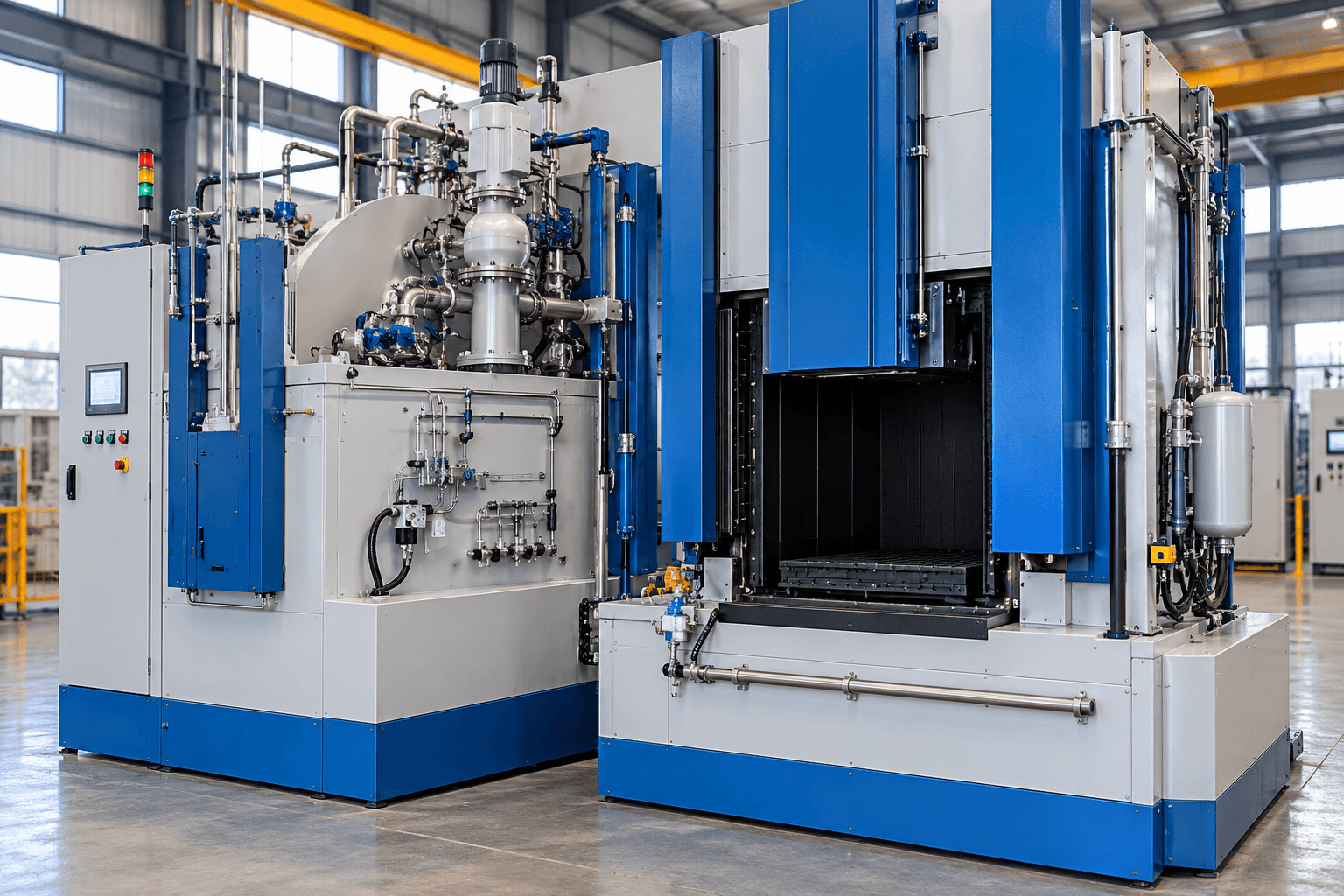

Atmosphere Control Sealed Quench Furnace (SQF)

Sealed Quench Furnace (SQF)

Multi-purpose batch atmosphere line with integral oil quench tank, internal elevator, vestibule chamber, and oxygen probe carbon control.

Max Temp:950°C
Atmosphere:Endothermic / Nitrogen-Methanol / LPG
Heating:Gas Radiant Tubes / Electric APM Tubes
Capacity:300 Kgs to 1500 Kgs per batch

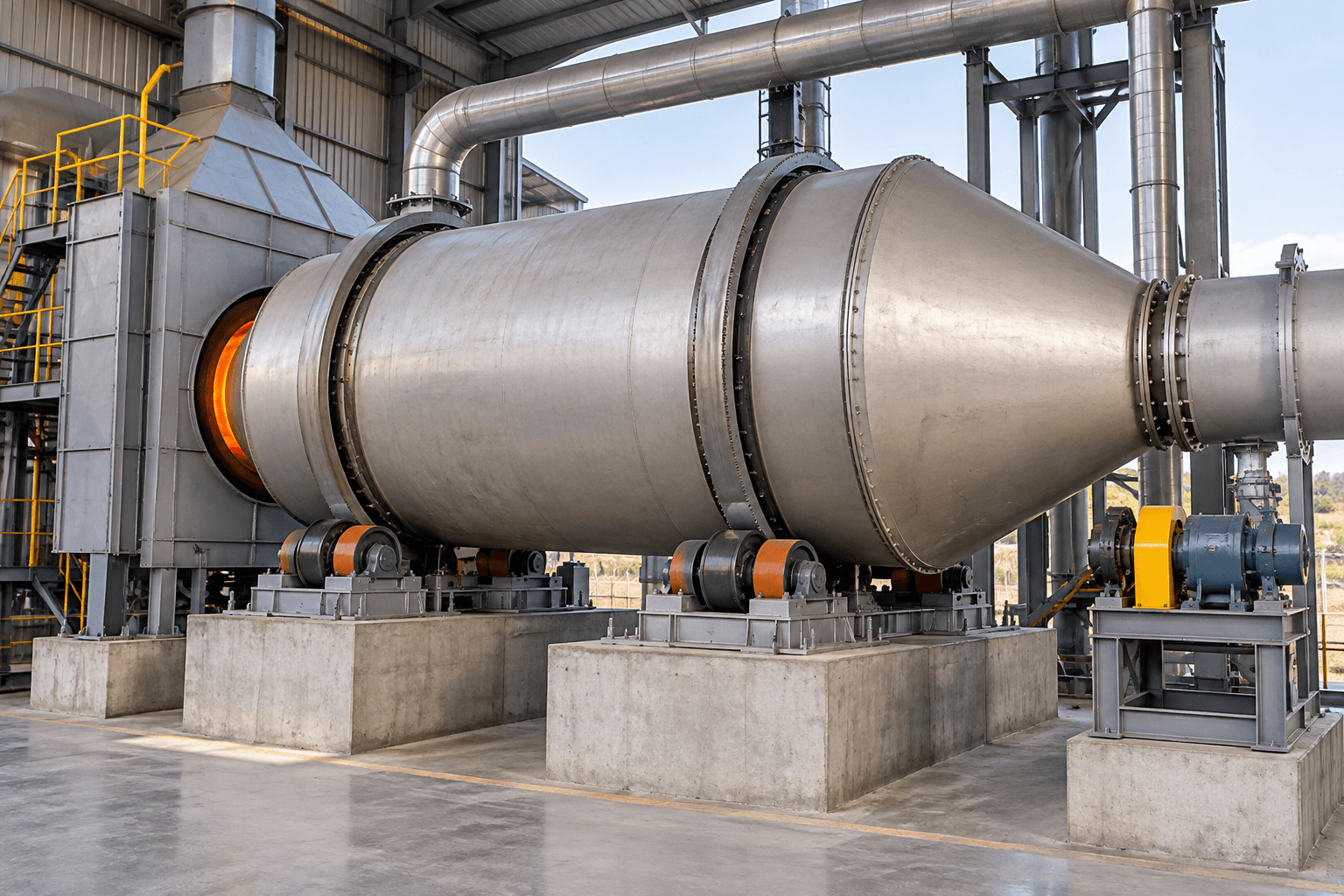

High Throughput Rotary Furnace

Rotary Furnace

Rotary retort and rotary hearth furnaces designed for continuous, uniform through-hardening and carburizing of small fasteners, balls, and rollers.

Max Temp:950°C to 1150°C
Atmosphere:Endothermic Gas / Nitrogen Atmosphere
Heating:Electric / Radiant Gas Burners
Capacity:150 Kgs/hr to 1500 Kgs/hr

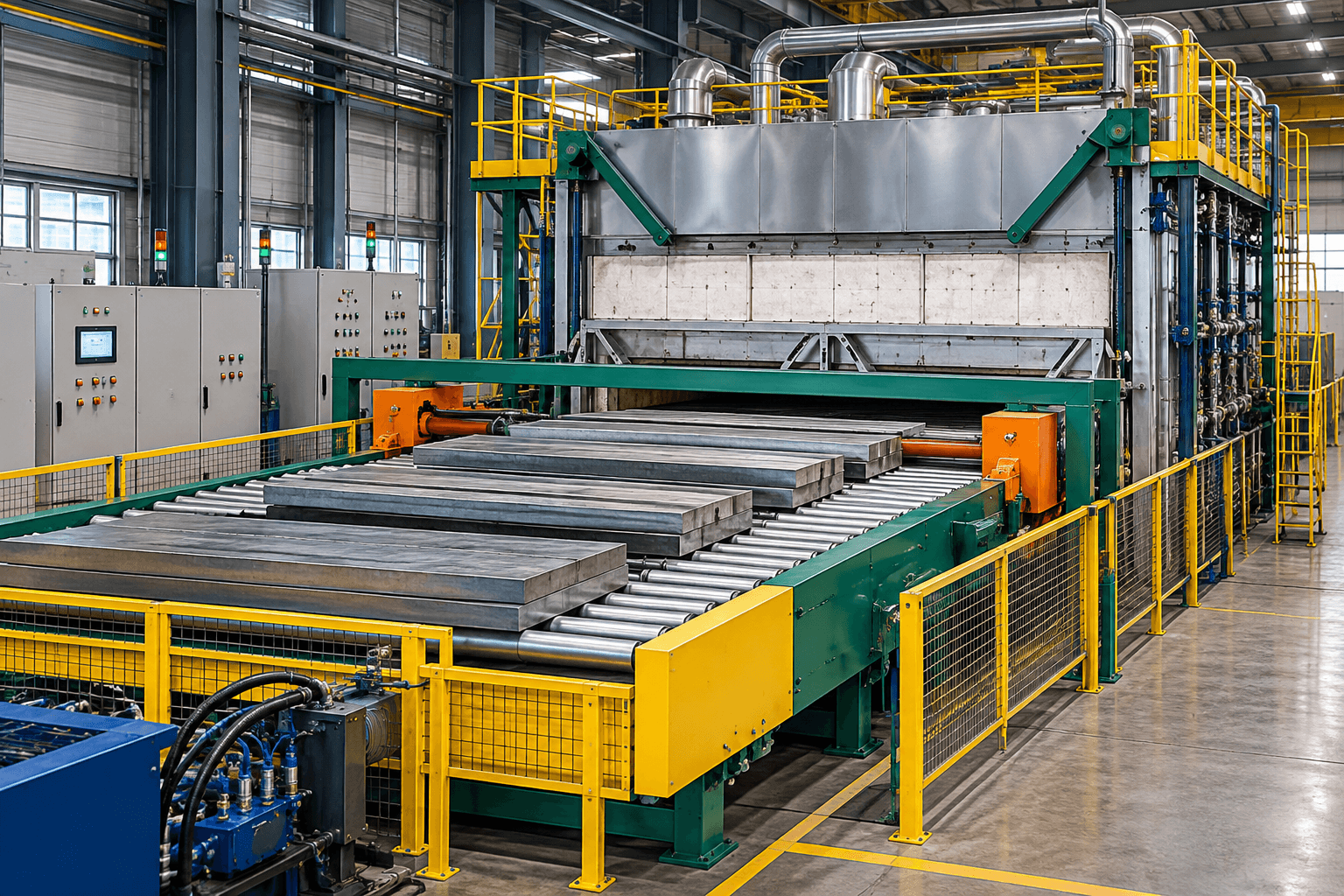

Continuous Push Pusher Furnace

Pusher Furnace

Heavy continuous conveyor furnace using mechanical or hydraulic pushers to advance trays of heavy components through multiple heating and quench zones.

Max Temp:1050°C
Atmosphere:Endothermic Gas / Nitrogen Purge
Heating:Electric Silicon Carbide / Radiant Tubes
Capacity:500 Kgs/hr to 3000 Kgs/hr

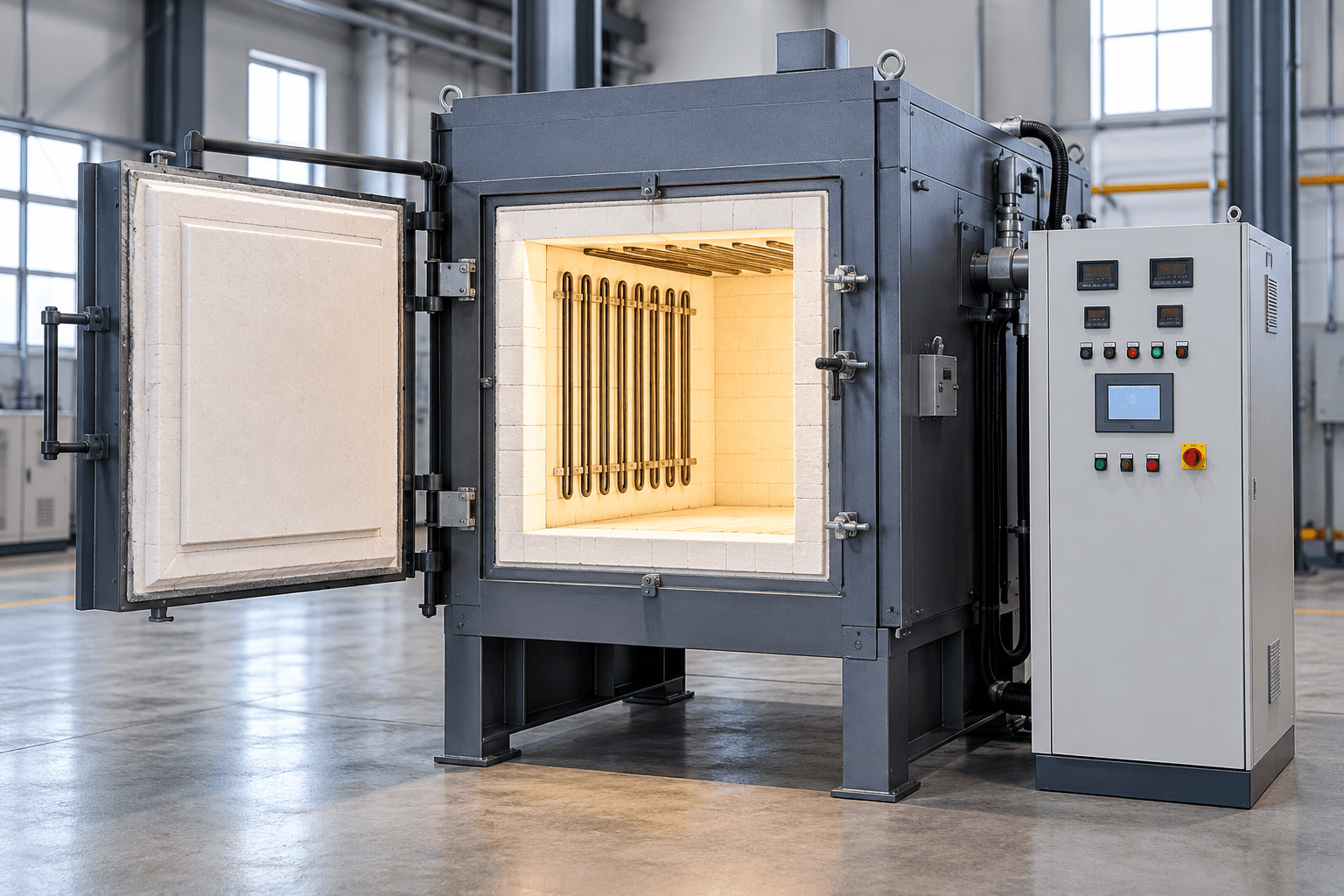

Up to 1600°C High Temperature Furnace

High Temperature Furnace

Ultra-high temperature ceramic fiber lined furnace equipped with MoSi2 (Molybdenum Disilicide) heating elements for advanced technical ceramics.

Max Temp:1400°C to 1700°C
Atmosphere:Air / Inert Argon / Nitrogen Atmosphere
Heating:MoSi2 (Molybdenum Disilicide) / SiC
Capacity:10 Liters to 1000 Liters
